4 Core Copper Aluminum Waterproof Fiber Optic Pigtails SC FC 9.8mm Military Ruggerized Cable PE

Name: 4 Core Copper Aluminum Waterproof Fiber Optic Pigtails SC FC 98mm Military Ruggerized Cable PE
Brand: YINGDA
Price: 0.16 USD

Best 4 Core Copper Aluminum Waterproof Fiber Optic Pigtails SC FC 9.8mm Military Ruggerized Cable PE wholesale

Brand Name : YINGDA

Model Number : YDPG-SCAXXX-9804-2D015

Certification : ISO SGS ROHS

Place of Origin : china

MOQ : 50 pcs

Price : 0.16USD-19.9USD

Payment Terms : Western Union, T/T

Supply Ability : 60,000 pcs per month

Delivery Time : 7days after payment

Packaging Details : 1 pc/ box,100pcs / carton box

connector : SC / APC

fiber count : 4 core

insertion loss : <0.3dB

fiber type : G652D single mode

package : plastic bag / carton box

cable color : black

strength member : steel wire

cable material : PE

cable diameter : 9.8mm

cable length : 15meter

product name : fiber optical pigtall，fibre optic pigtail， fo pigtall，fiber optik pigtail

Customer Logo : yes

Contact Now

4 Core Copper Aluminum Waterproof Fiber Optic Pigtails SC FC APC 9.8mm Military Ruggerized Cable PE

Waterproof fiber pigtail/Patch cord can be used in harsh environment. It is mainly used in outdoor connection of the optical transmitter. Waterproof fiber pigtail is designed with a stainless steel strengthened waterproof unit and armored outdoor PE jacketed cables.

Optical Connector Specification

Parameter	Unit	Water-proof fiber pigtail /Patch cord
		SM			MM
		PC	UPC	APC	PC
sInsertion loss (typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2
Return loss	dB	≥45	≥50	≥60	≥35
Operating wavelength	nm	1310, 1550
Exchangeability	dB	≤0.2
Vibration	dB	≤0.2
Operating temperature	℃	-40~75
Storage temperature	℃	-45~85
Inner Cord diameter	mm	φ3.0,φ2.0,φ0.9
Fiber cores	Cores	4, 6, 8, 12, 24, … fibers
Applicable connector		FC, SC, ST, MU, LC
Waterproof connector material		Aluminum or copper optional.
Geometric dimension of end face		Radius of curvature: 10-25 (PC / UPC), 5-12 (APC) Vertex offset: 0-50um Optical fiber depression: - 100 ~ + 100nm
Standards		NTT, TELCORDIA, IEC ITU, UL94-V0

4 Core Copper Aluminum Waterproof Fiber Optic Pigtails SC FC 9.8mm Military Ruggerized Cable PE

Cable structure

Waterproof cable use one or more single-core fiber optic cable around a central strength member to strand, the longitudinally wrap plastic composite tape,outside squeeze cable jacket.

4 Core Copper Aluminum Waterproof Fiber Optic Pigtails SC FC 9.8mm Military Ruggerized Cable PE

Features

Waterproof tape around the package, goog at water blocking, suitable for outdoor harsh environments
High strength steel to enhance tensile strength, good ground performance

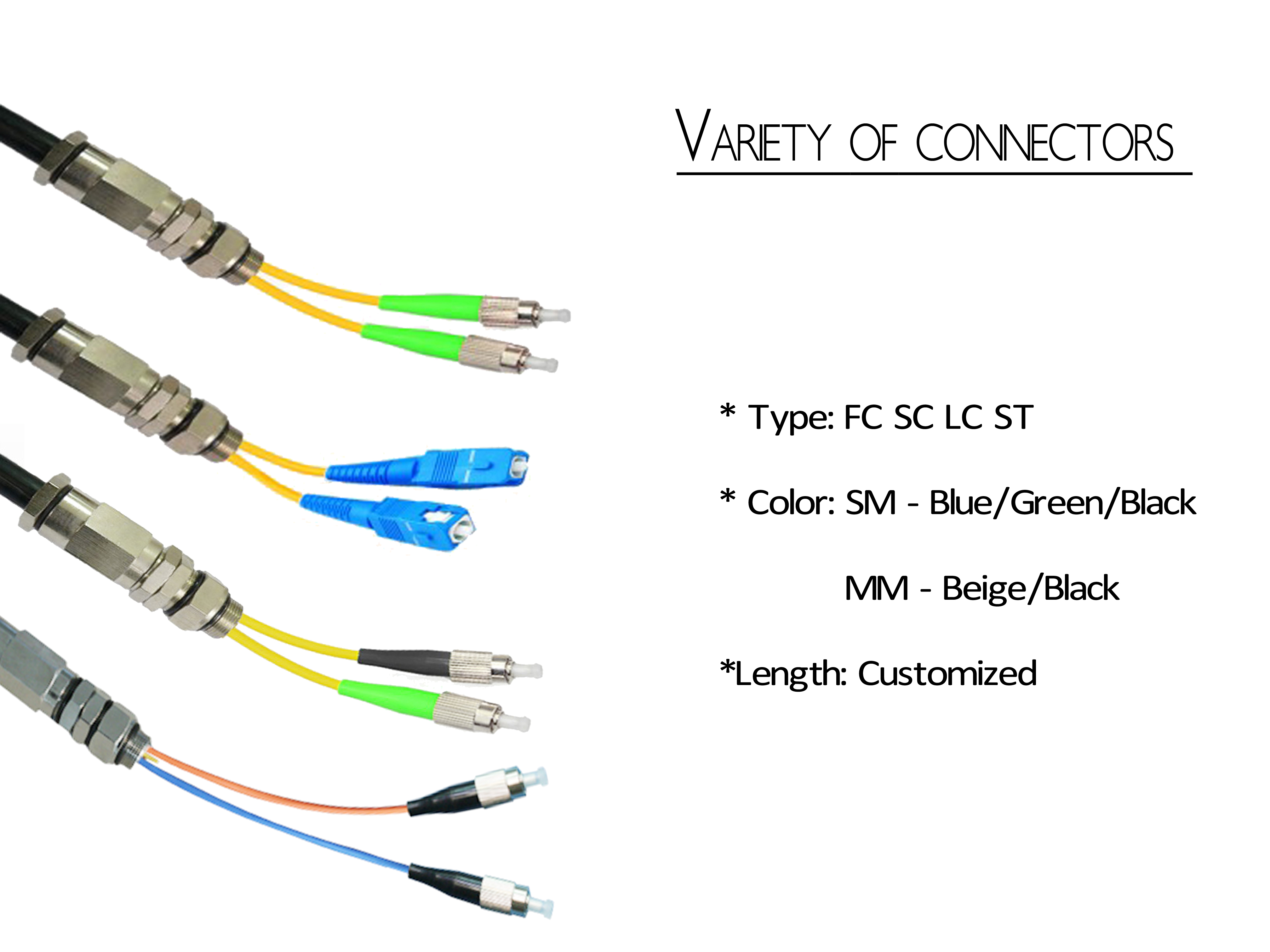

Easy to install, simple and reliable, suitable for various connectors SC FC LC ST,etc
Fiber core: 2, 4, 6, 8,12 optional
Low insertion loss, high return loss, excellent exchange-ability, high stability
The cable and pigtail is not moved when tighten the connection screw, which ensure the convenient construction.

4 Core Copper Aluminum Waterproof Fiber Optic Pigtails SC FC 9.8mm Military Ruggerized Cable PE

Application

Optical fiber CATV network
Optical fiber LANs
Data and telecommunication system
Main line cable and fiber optical receiver connection

Mechanical technical:

Fiber Core	outer dia.　(mm)	weight (kg/km)	max.tension (N)		Min. bend radius (mm)
			short term	long term	installation	working
<6core	9.8	80	1000	300	20D	10D
	11.8	110	1000	300	20D	10D
Storage Temp.℃	-40～+70
Operating Temp. ℃	-20～+70

Transmission Technical:

Wavelength	850/1300nm		1310/1550nm
Fiber type	multimode fiber		G.652	G.655
Core/coating dia.	50/125um	62.5/125um	/	/
Attenuation (dB/km)	≤3.0/1.0	≤3.5/1.5	≤0.4/0.25	≤-/0.5
Bandwidth (MHz·km)	≥200/400	≥160/200	/	/

4 Core Copper Aluminum Waterproof Fiber Optic Pigtails SC FC 9.8mm Military Ruggerized Cable PE

Order information

YDPG

Connector type side A

Connector type side B

Cable diameter

Fiber count

Fiber type

Cable length

YD=yingda

PG=Pigtail

PC=patch cord

SCU=SC/UPC

SCA=SC/APC

FCU=FC/UPC

FCA=FC/APC

...

Xxx=null

SCU=SC/UPC

SCA=SC/APC

FCU=FC/UPC

FCA=FC/APC

...

Xxx=null

98=9.8mm

11=11.8mm

02=2core

04=4core

06=6core

2D=G652D

A1=G657A1

A2=G657A2

M1=OM1

M2=OM2

M3=OM3

M4=OM4

001=1meter

002=2meter

...

015=15meter

120=120meter

...
