24 Cores FTTH PLC Fiber Optic Splitter Box , 8 Ports Fiber Optical Splice Box IP65

Name: 24 Cores FTTH PLC Fiber Optic Splitter Box 8 Ports Fiber Optical Splice Box IP65
Brand: YINGDA
Price: 1 USD

Best 24 Cores FTTH PLC Fiber Optic Splitter Box , 8 Ports Fiber Optical Splice Box IP65 wholesale

Brand Name : YINGDA

Model Number : GJS-2021

Certification : ISO

Place of Origin : china

MOQ : 100pcs

Price : negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 1 week

Packaging Details : 1 pc / box, 6 pc / master box

material : ABS

dimension : 300*186.5*59mm

Cable port : 2in 2out

drop cable port : 8 pcs 2*3mm ftth

Cable diameter : Φ8～Φ13mm

feature : snap on, clip lock

splitter type : 1x8 PLC splitter slot type

max fusion : 24 fibers / cores

Contact Now

24 Cores FTTH 1*8 PLC Splitter Box, 8 Ports Fiber Optical Splice Box IP65

GJS-2021 Splitting and Wiring fiber optical splice closure not only have the butt-joint and branching function, but also have the function of optical cable splitting and wiring, suitable for the installation of main optical cables and drop cables with different diameters.

Specification

Model	GJS-2021
Dimension	300186.559mm
Max fusion capacity	24fibers
Max splitter	1pc 1:8 splitter module (LGX)
Cable ports	2in 2out, 8pcs drop cable for 2x3mm in and out
Max. SC adapter	9pcs
Cable diameter	Round ports: 4-Φ8～Φ13mm;drop cable ports: 8-2*3mm

Feature

The closure adopts horizontal mechanical sealing and advanced internal structure design.
It can be installed one 1:8 Cassette PLC splitter.
8 pcs 2*3mm drop cable both ends in and out.
The closure is spacious enough for winding and storing fibers.
The patented sealing structure keep good sealing performance after re-entry and re-using.
Easy open and close of closure without tool.
24cores Fusing Splice available

24 Cores FTTH PLC Fiber Optic Splitter Box , 8 Ports Fiber Optical Splice Box IP65

Application

Suitable for bunchy fibers
Aerial, wall-mounting
It’s especially applicable to FTTH optical fiber distribution

Standard accessories

seal type 1roll, labeling paper, abrasive cloth, insulation tape, nylon tie,desiccant, heat shrinkable protective sleeve, butter tube, hanging hook/1set

Product Tags:

fiber optic junction box

fiber optic cable junction box

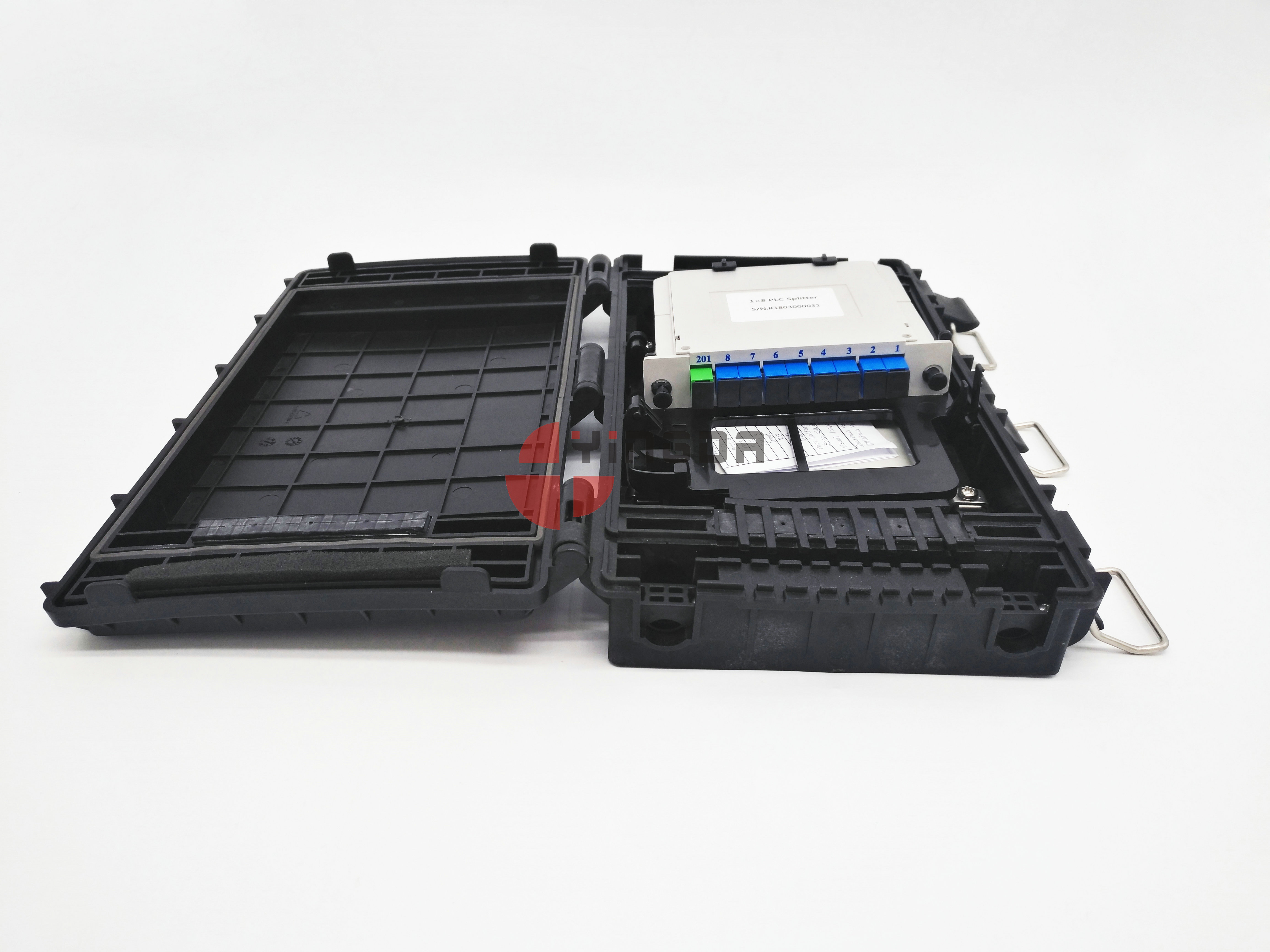

24 Cores FTTH PLC Fiber Optic Splitter Box , 8 Ports Fiber Optical Splice Box IP65 Images
